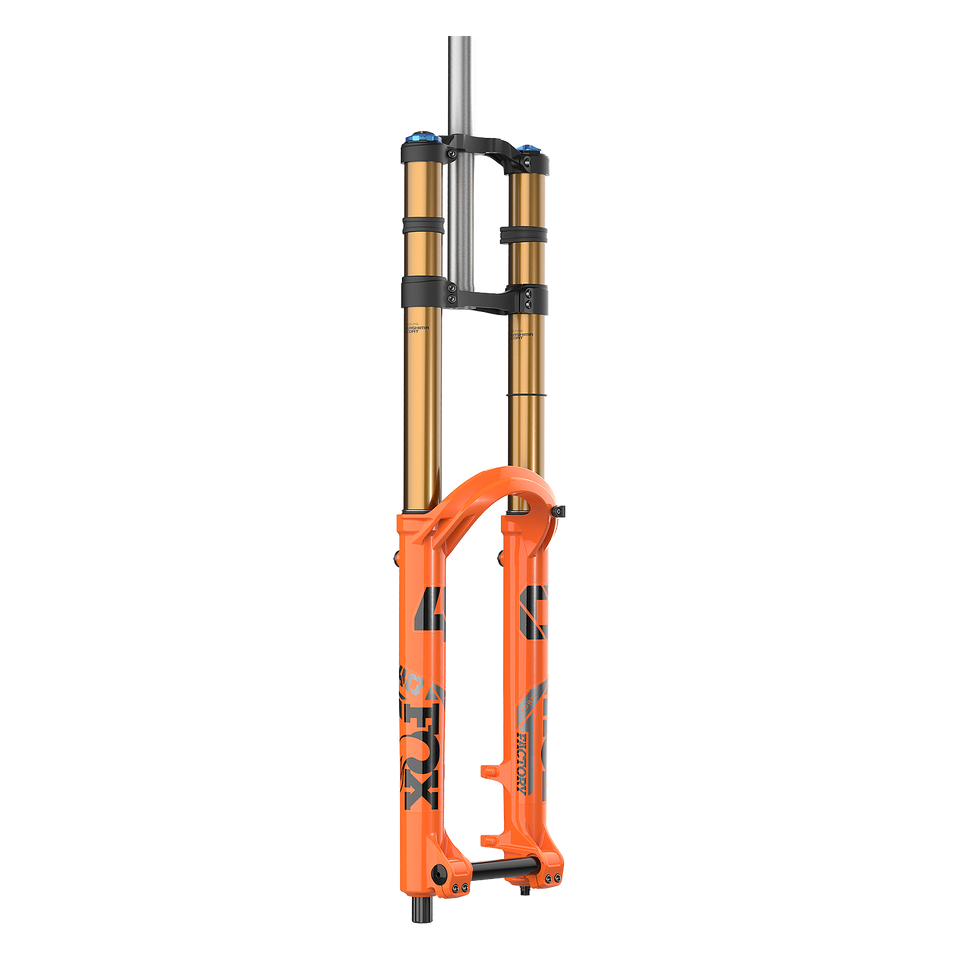

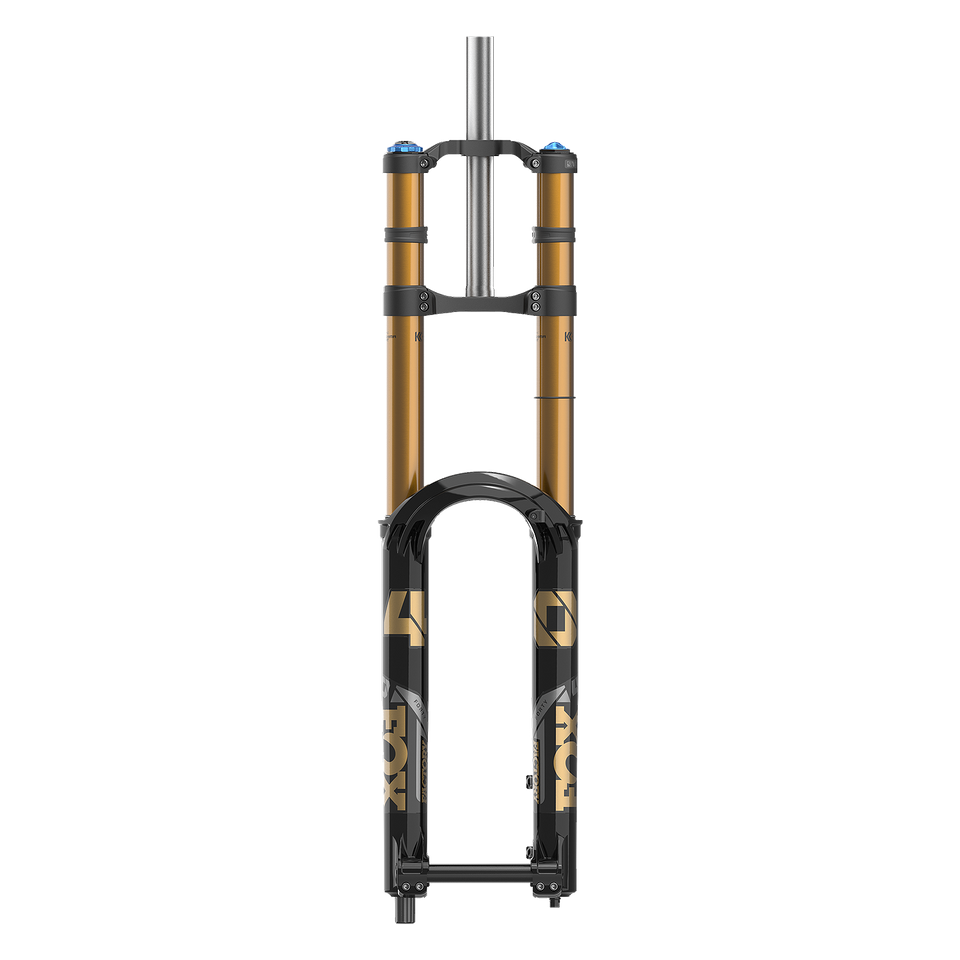

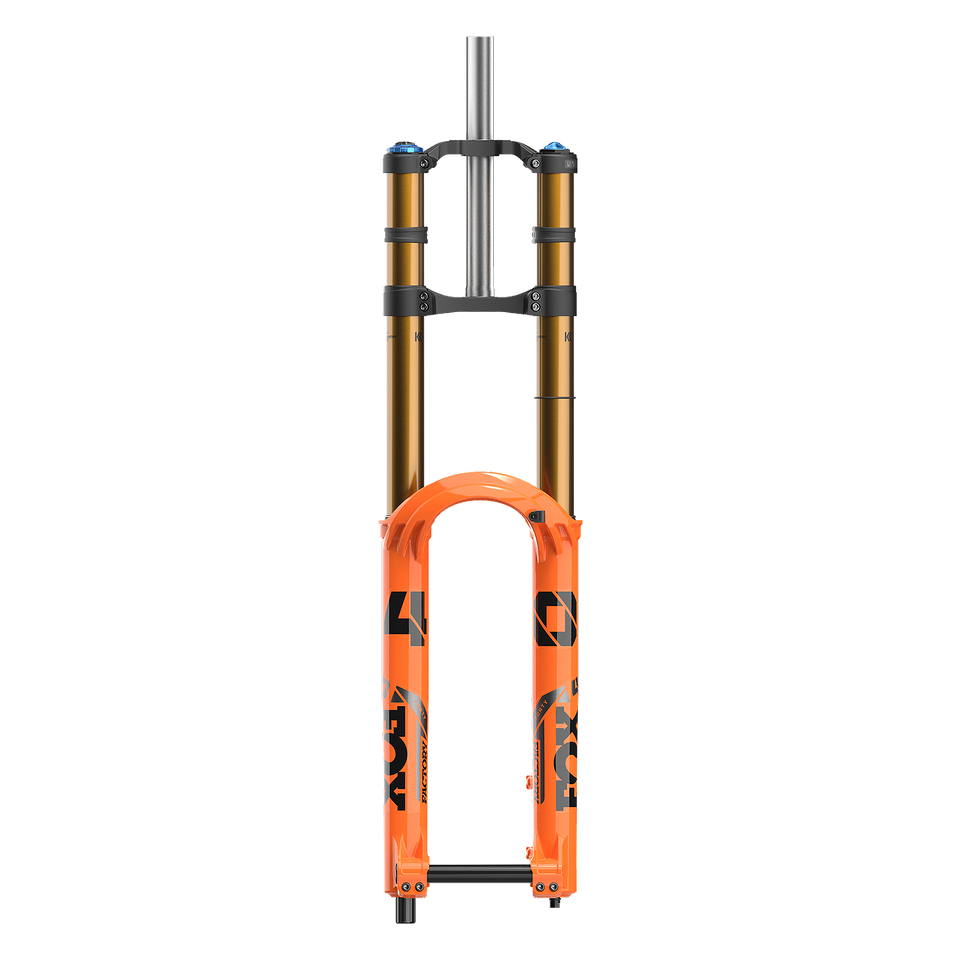

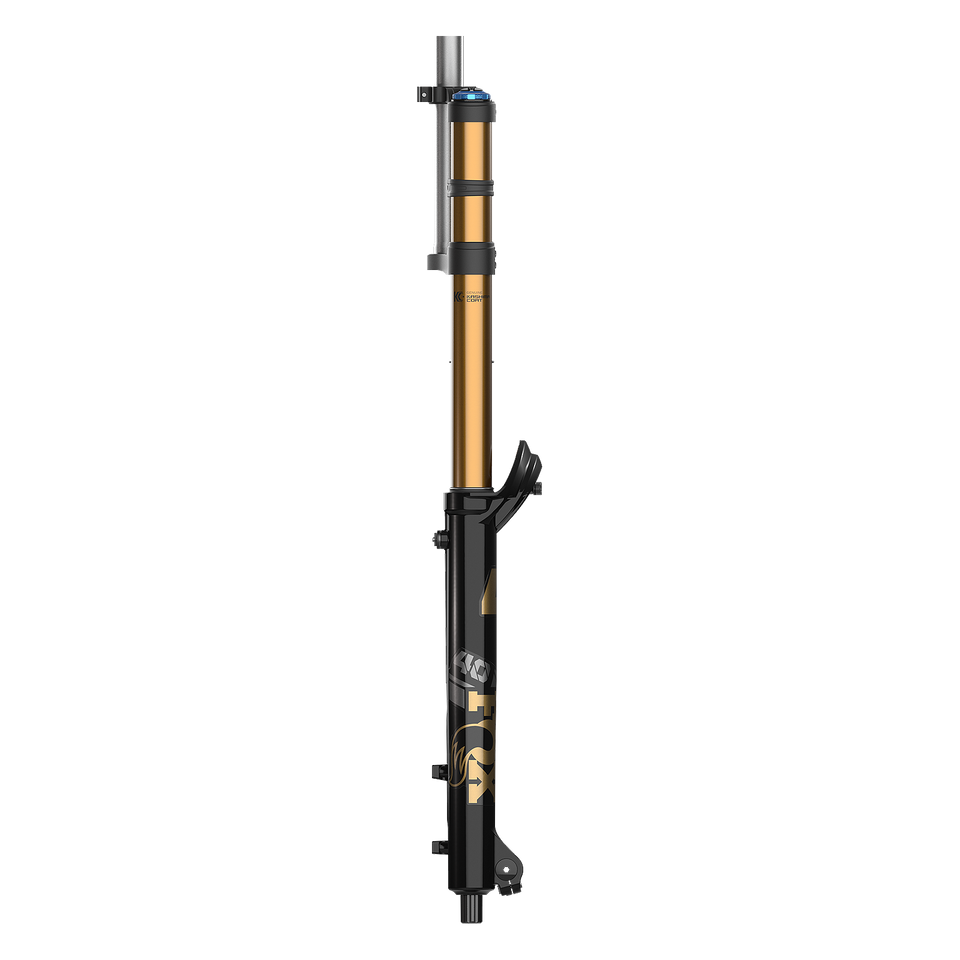

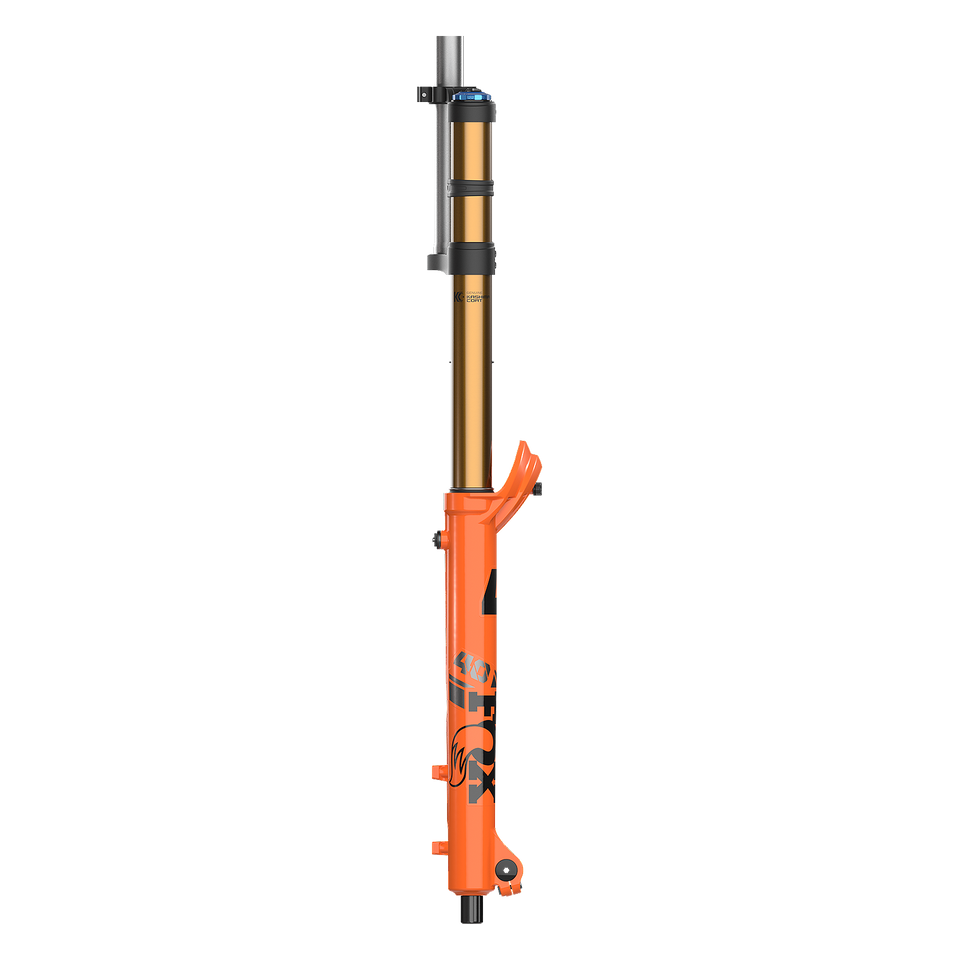

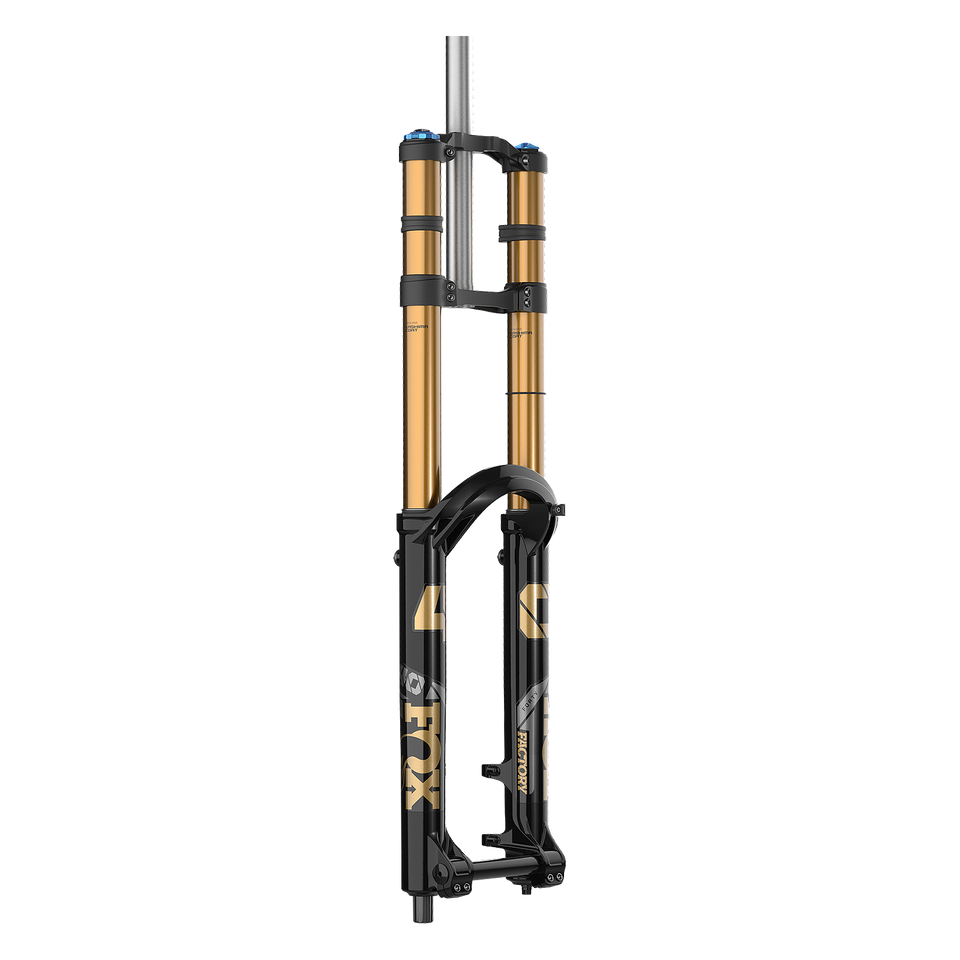

FOX 40 FACTORY - GRIP X2
Target locked on the top step of the podium and developed in the crucible of World Cup competition, the 40 is the definitive DH race fork. The GRIP X2 damper now offers more tunability and traction than ever before, ensuring the 40 stays planted in the hot seat.
PART NUMBER | 910-21-280 |
SERIES | Factory |
CHASSIS | Standard |
WHEEL SIZE | 29in |
TRAVEL | 203mm |
DAMPER | GRIP X2 |
DAMPER CONTROLS | HSC - LSC - HSR - LSR |
AXLE | 20TAx110 |
RAKE | 52mm |
STEERER | 1.125 Tapered |
UPPER TUBE FINISH | Kashima |
AIR CHANNELS | Yes |
BLEEDERS | Yes |
FLOATING AXLE | Yes |
ROTOR SIZE | 203 direct Post Mount, Up to 230 compatible |
MUD GUARD MOUNT | Optional FOX 40 Mud Guard with sturdy 4-point direct-mount attachment |
AIR SPRING | FLOAT EVOL |
STARTING WEIGHT | 2745g (40, 29, F-S, 200, Grip X2, Kabolt) |
PART NUMBER | 910-21-281 |
SERIES | Factory |
CHASSIS | Standard |
WHEEL SIZE | 29in |
TRAVEL | 203mm |
DAMPER | GRIP X2 |
DAMPER CONTROLS | HSC - LSC - HSR - LSR |
AXLE | 20TAx110 |
RAKE | 52mm |
STEERER | 1.125 Tapered |
UPPER TUBE FINISH | Kashima |
AIR CHANNELS | Yes |
BLEEDERS | Yes |
FLOATING AXLE | Yes |
ROTOR SIZE | 203 direct Post Mount, Up to 230 compatible |
MUD GUARD MOUNT | Optional FOX 40 Mud Guard with sturdy 4-point direct-mount attachment |
AIR SPRING | FLOAT EVOL |
STARTING WEIGHT | 2745g (40, 29, F-S, 200, Grip X2, Kabolt) |
PART NUMBER | 910-21-306 |
SERIES | Factory |
CHASSIS | Standard |
WHEEL SIZE | 27.5in |
TRAVEL | 203mm |
DAMPER | GRIP X2 |
DAMPER CONTROLS | HSC - LSC - HSR - LSR |
AXLE | 20TAx110 |
RAKE | 48mm |
STEERER | 1.125 Tapered |
UPPER TUBE FINISH | Kashima |
AIR CHANNELS | Yes |
BLEEDERS | Yes |
FLOATING AXLE | Yes |
ROTOR SIZE | 203 direct Post Mount, Up to 230 compatible |
MUD GUARD MOUNT | Optional FOX 40 Mud Guard with sturdy 4-point direct-mount attachment |
AIR SPRING | FLOAT EVOL |
STARTING WEIGHT | 2745g (40, 29, F-S, 200, Grip X2, Kabolt) |
