FOX 34 FACTORY - GRIP X
29in Wheel Size
A trail fork not to be underestimated, the venerable 34 is more capable than ever before. With damping optimized for trail, the 34 excels at all-mountain descending while keeping the weight low.
PART NUMBER | 910-21-295 |
CHASSIS | Standard |
WHEEL SIZE | 29in |
TRAVEL | 140mm |
DAMPER | GRIP X |

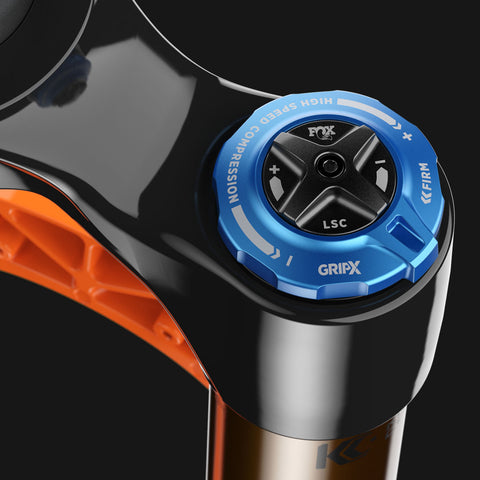

DAMPER CONTROLS | HSC, LSC, LSR |

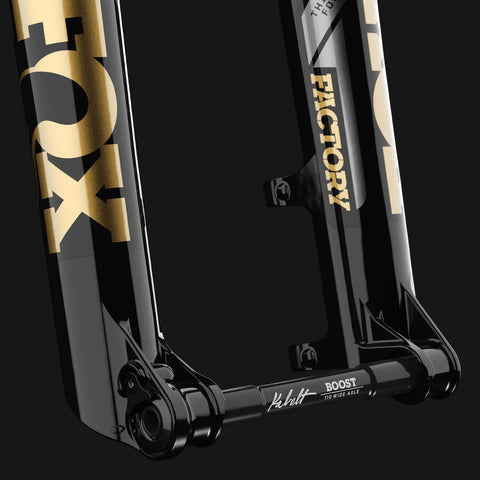

AXLE | Kabolt 110 |
RAKE | 44mm |
STEERER | 1.5 Tapered |

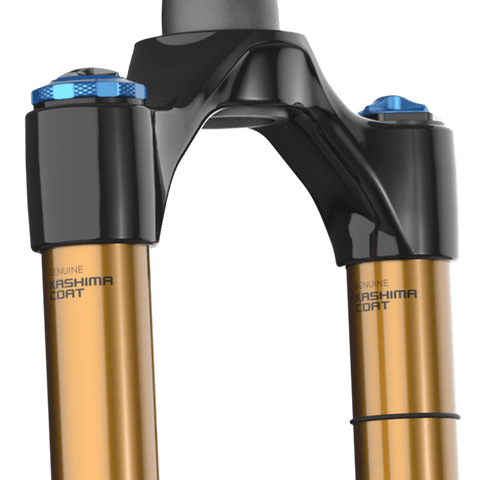

UPPER TUBE FINISH | Kashima |
AIR CHANNELS | N/A |
BLEEDERS | N/A |
FLOATING AXLE | N/A |
ROTOR SIZE | 180 direct Post Mount, Up to 203 compatible |
MUD GUARD MOUNT | N/A |
AIR SPRING | FLOAT EVOL |
STARTING WEIGHT | 1686g (34, 29, F-S, 140, Grip X, Kabolt) |
DECAL | Kashima/Grey |
AXLE TO CROWN | 435.5mm |
FENDER MOUNT | Included full fender mount hardware |
MAX TIRE SIZE | 700c x 50mm (Optimized for 700c - not 650b compatible) |
FORK COLOR | Shiny Black |
STANCHION | 34 |
MODEL YEAR | 2025 |

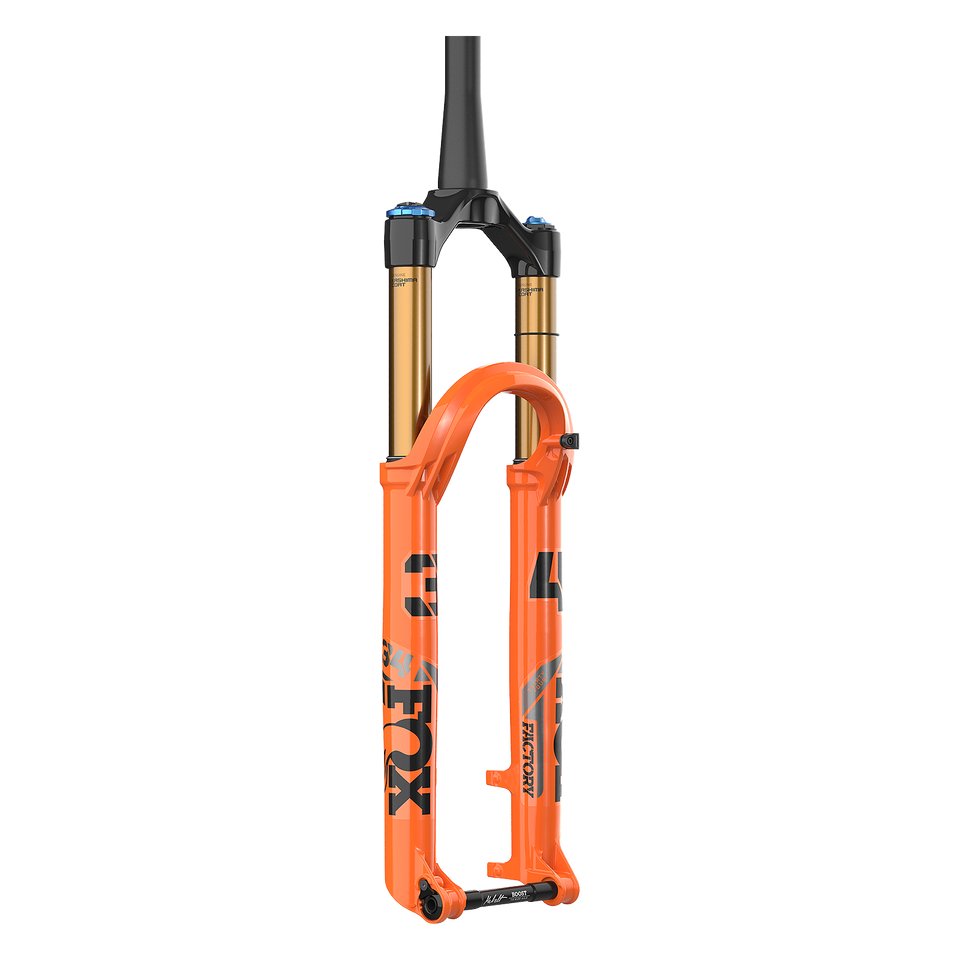

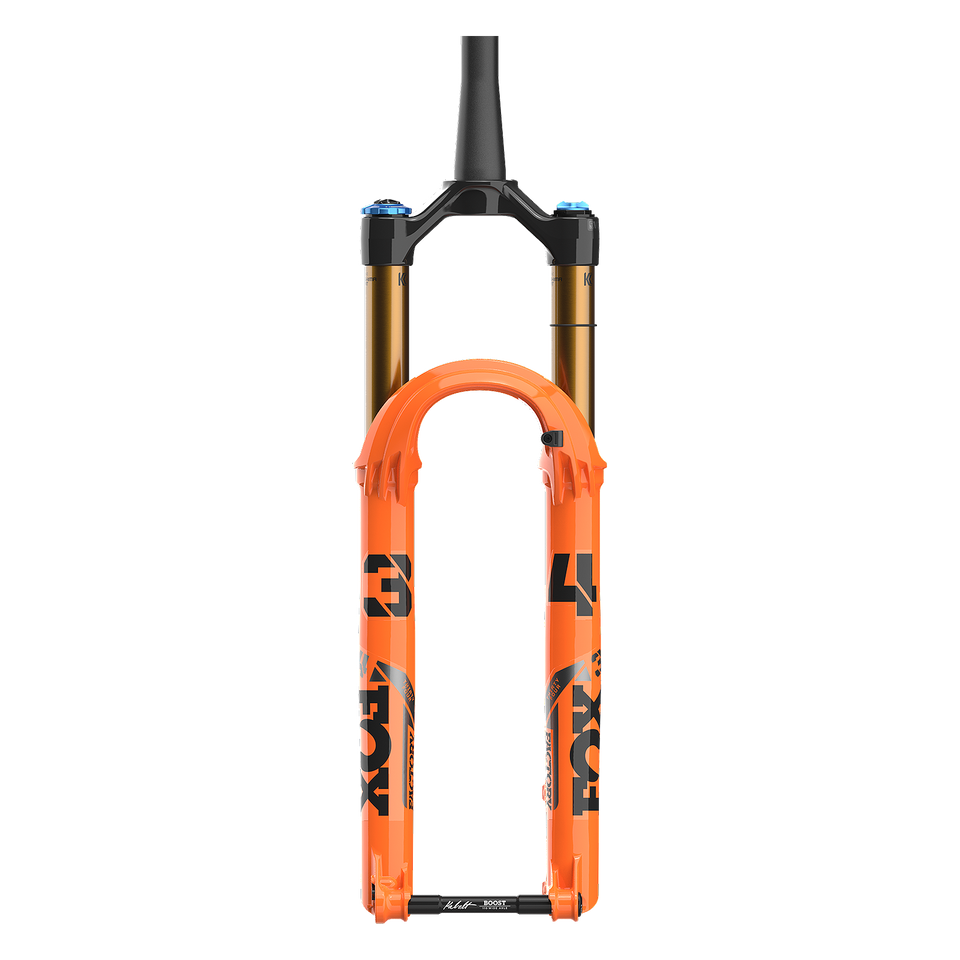

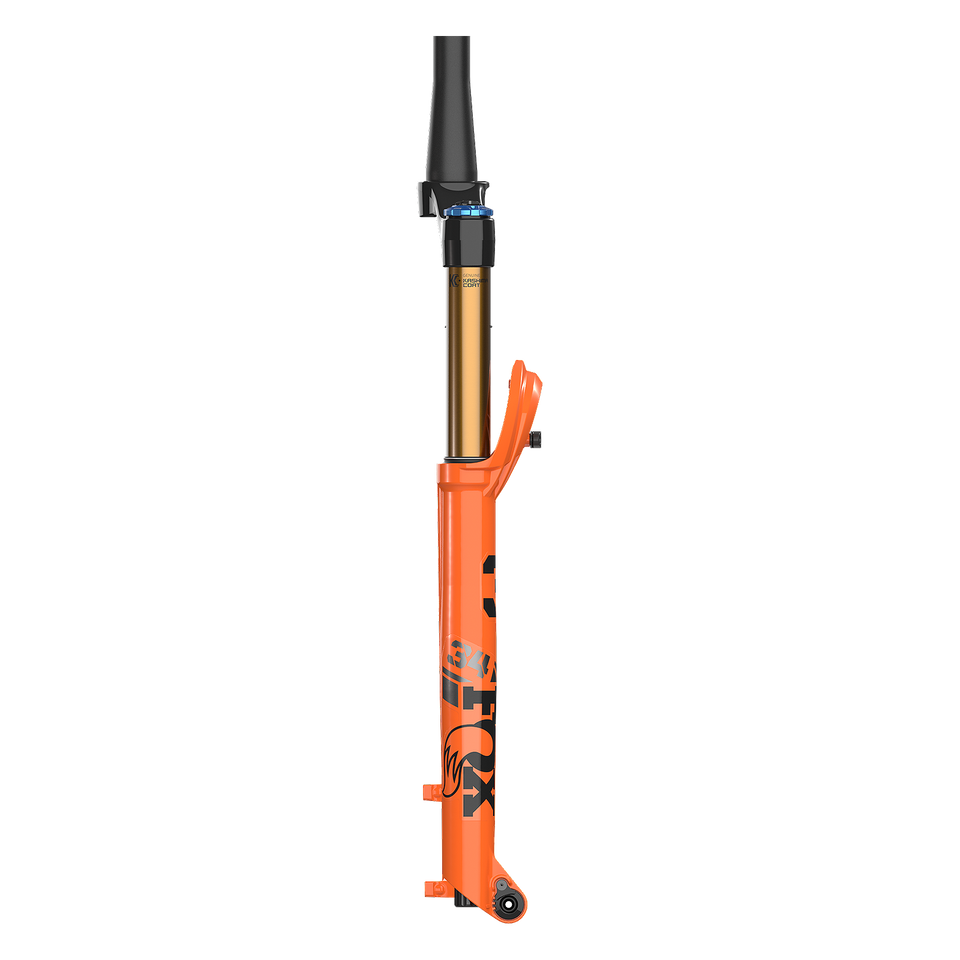

PART NUMBER | 910-21-296 |
CHASSIS | Standard |
WHEEL SIZE | 29in |
TRAVEL | 130mm |
DAMPER | GRIP X |
DAMPER CONTROLS | HSC, LSC, LSR |
AXLE | Kabolt 110 |
RAKE | 44mm |
STEERER | 1.5 Tapered |
UPPER TUBE FINISH | Kashima |
AIR CHANNELS | N/A |
BLEEDERS | N/A |
FLOATING AXLE | N/A |
ROTOR SIZE | 180 direct Post Mount, Up to 203 compatible |
MUD GUARD MOUNT | N/A |
AIR SPRING | FLOAT EVOL |
STARTING WEIGHT | 1686g (34, 29, F-S, 140, Grip X, Kabolt) |
DECAL | Black/Clear |
AXLE TO CROWN | 435.5mm |
FENDER MOUNT | Included full fender mount hardware |
MAX TIRE SIZE | 700c x 50mm (Optimized for 700c - not 650b compatible) |
FORK COLOR | Shiny Orange |
STANCHION | 34 |
MODEL YEAR | 2025 |

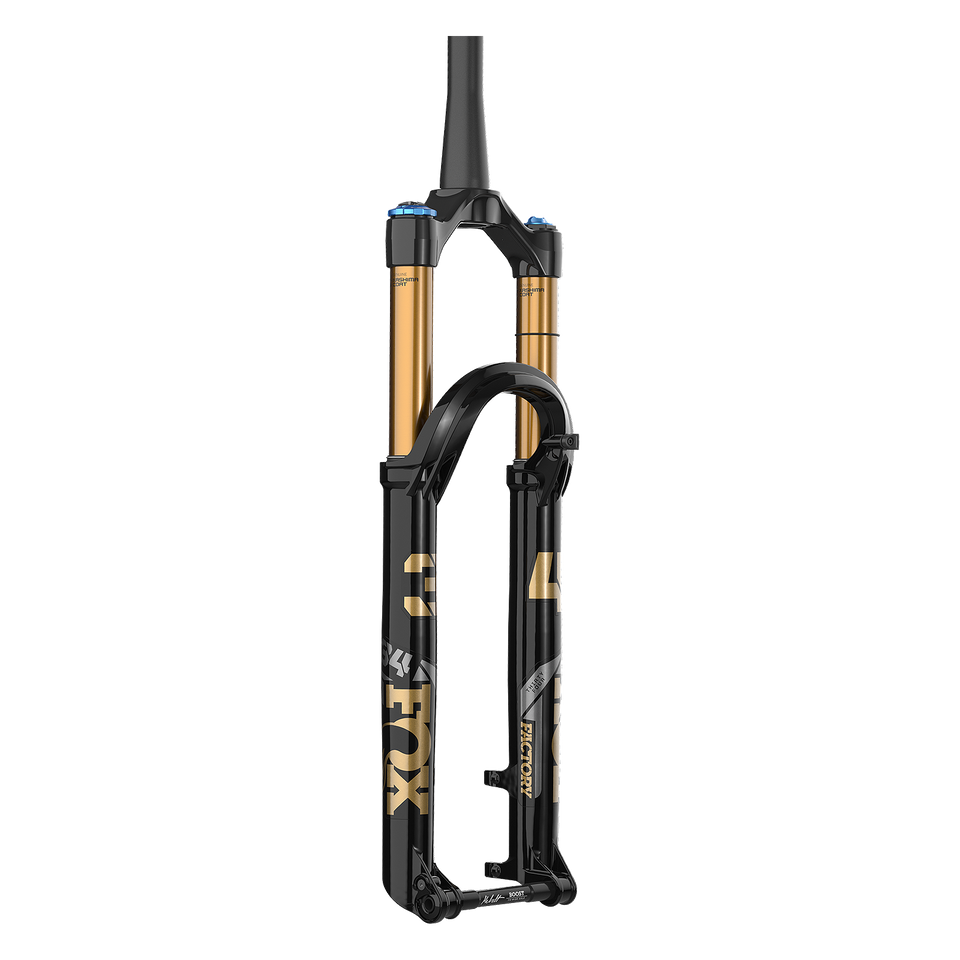

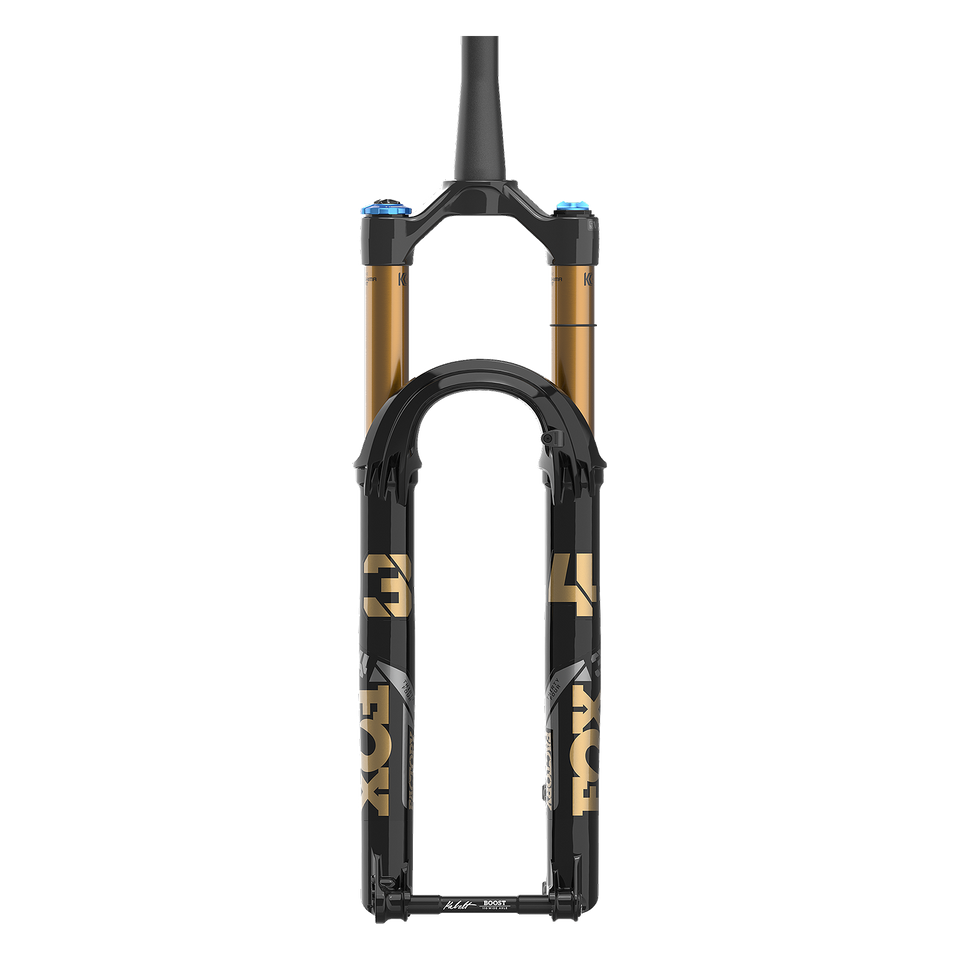

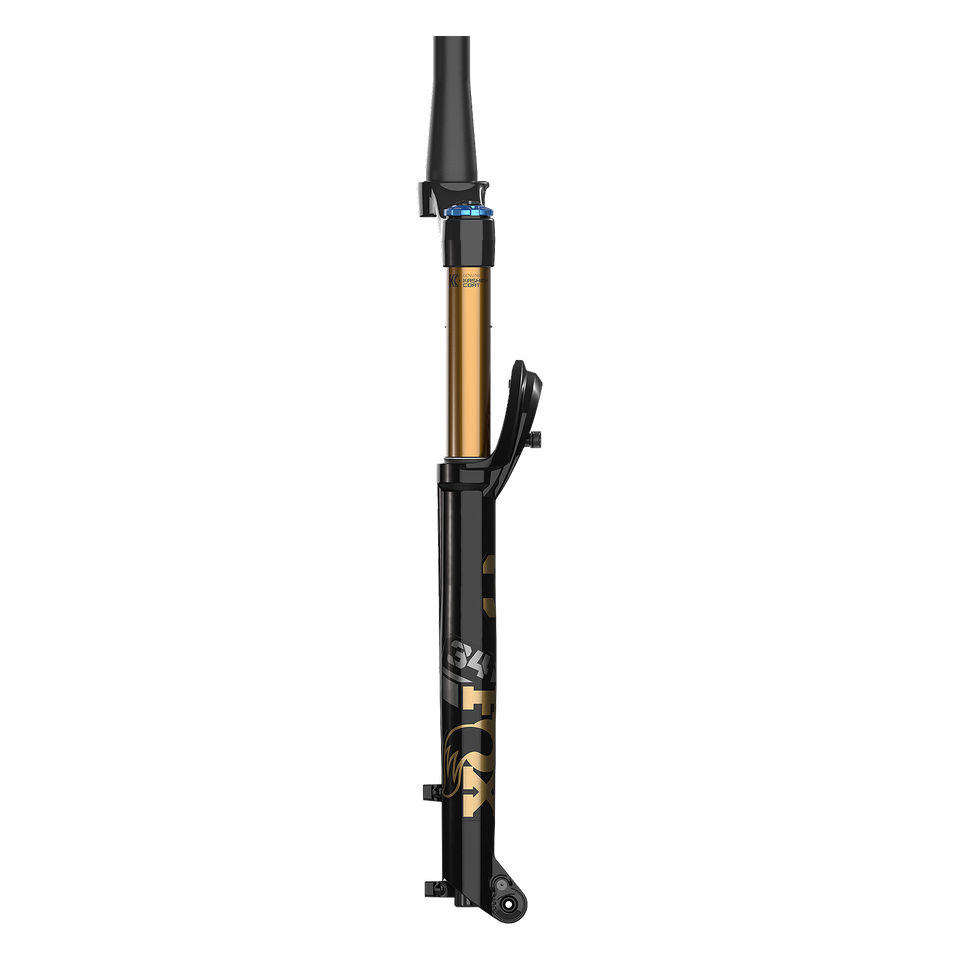

PART NUMBER | 910-21-297 |
CHASSIS | Standard |
WHEEL SIZE | 29in |
TRAVEL | 130mm |
DAMPER | GRIP X |
DAMPER CONTROLS | HSC, LSC, LSR |
AXLE | Kabolt 110 |
